T113074

Description

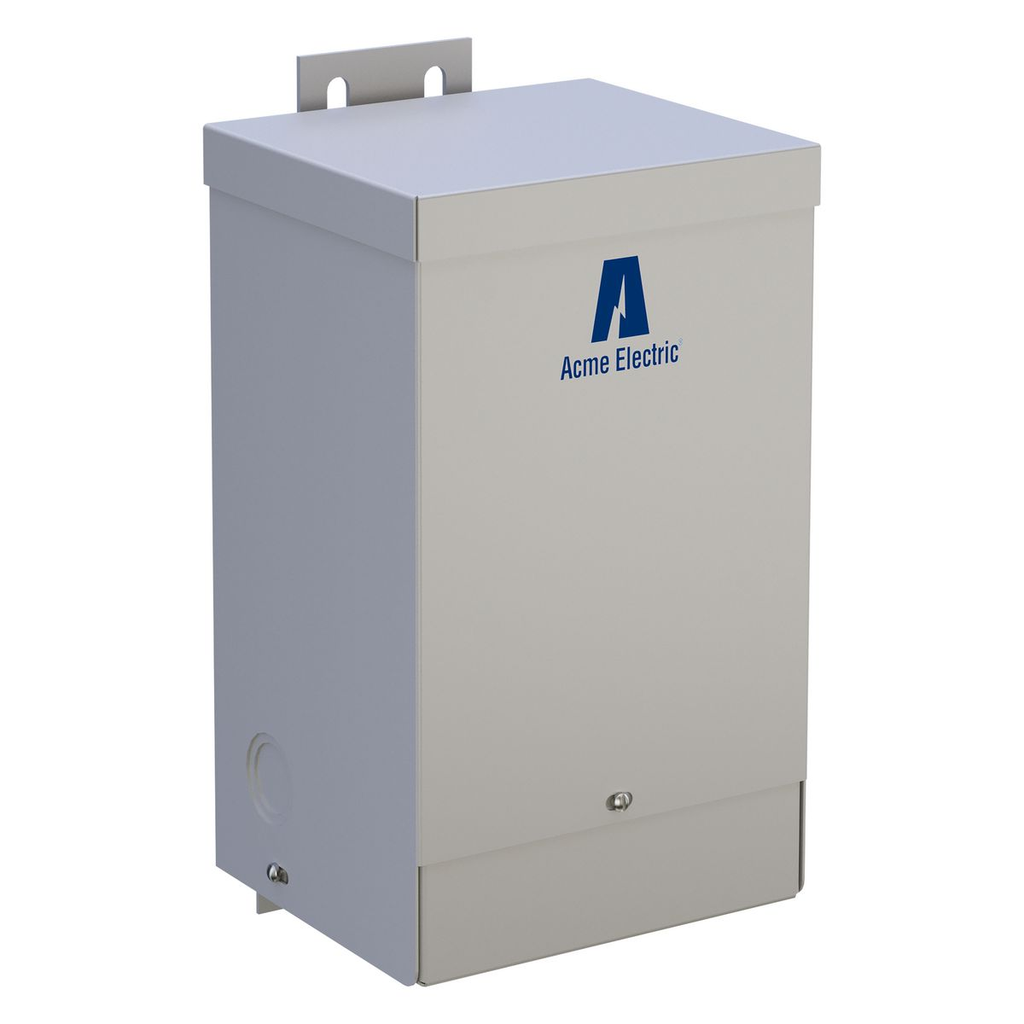

The Acme T113074 Dry Type Buck-Boost Transformer is a versatile single-phase transformer designed to provide reliable voltage adjustment in various applications. With a primary voltage of 120/240V and secondary voltage options of 16V or 32V, this 1.5 kVA transformer is an economical solution for boosting or bucking voltage, making it ideal for numerous electrical configurations. Its encapsulated construction ensures durability and long-lasting performance, even under demanding conditions.

Engineered for ease of installation and use, this transformer features a maximum temperature rise of 115°C and is rated for operation at 60 Hz. Its NEMA 3R rating means it is suitable for outdoor and damp locations, while its UL Insulation Class of 180°C provides additional safety and reliability. The wall-mounting design enhances convenience and flexibility in placement, offering a robust and cost-effective solution for your voltage adjustment needs.

Key Features of Acme T113074 Transformers:

• Easily configured for numerous applications
• Lower cost solution
• 5-10 times increase in kVA
• Encapsulated design for enhanced longevity.
• Operates with a maximum temperature rise of 115°C.
• Wall-mounting type for flexible placement.
• UL Insulation Class 180°C ensures high safety standards.
• NEMA 3R rating suitable for damp and outdoor locations.
